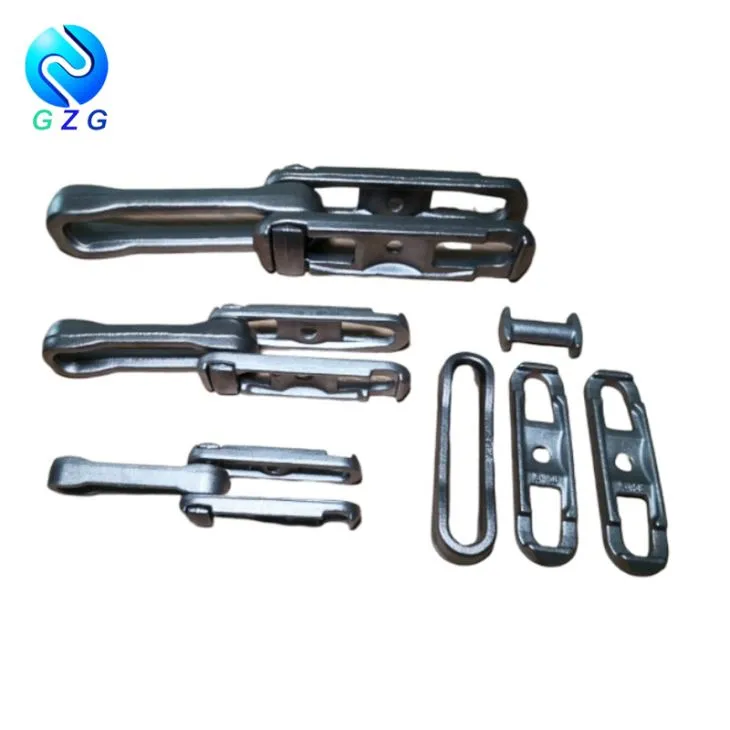

Drop-forged Rivetless Chain for Conveyors consists of three basic parts, each of which is a forged product. When the chain is assembled, the two outer chain plates and pins are placed in the middle of chain ring and rotate 90 degree to complete the process.
It is easy to disassemble, and the drop-forged rivetless chain can withstand the heavier materials running in the circular track.
Application industries of drop-forged chain for conveyors: automobile manufacturing, food processing, metal plant that need hanging chain.
Drawing and dimensions of Drop-forged Rivetless Chain for Conveyors
| Chain No. | Pitch | Dimensions | Lateral angle | Ultimate strength | Weight | |||||||
| A | B | F | S | J | K | T | D | Kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | degree | KN | ||
| X348 | 76.6 | 45.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 10.2 | 12.7 | 9.0 | 110.0 | 3.2 |
| X458 | 102.4 | 56.0 | 25.4 | 36.0 | 17.4 | 16.0 | 26.5 | 12.0 | 16.0 | 9.0 | 220.0 | 4.7 |
| X678 | 153.2 | 77.0 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 17.0 | 22.0 | 7.0 | 320.0 | 9.5 |
| X80 | 80.0 | 46.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 6.3 | 12.7 | 6.5 | 110.0 | 3.1 |
| F100 | 100.0 | 56.0 | 25.0 | 36.0 | 17.4 | 16.0 | 26.5 | 12.0 | 16.0 | 9.0 | 220.0 | 4.7 |
| Chain No. | Pitch | Dimensions | Lateral angle | Ultimate strength | Weight | |||||||
| A | B | F | S | J | K | T | D | Kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | degree | KN | ||
| S458 | 102.4 | 49.5 | 25.4 | 36.0 | 17.4 | 16.0 | 27.0 | 7.8 | 16.0 | 9.0 | 220.0 | 4.7 |
| S348 | 76.6 | 46.0 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 6.3 | 12.7 | 9.0 | 110.0 | 3.2 |
| S678 | 153.2 | 66.6 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 12.7 | 22.0 | 7.0 | 320.0 | 9.5 |
| S698 | 153.2 | 93.0 | 39.7 | 69.9 | 30.2 | 25.4 | 41.3 | 14.3 | 29.1 | 5.0 | 600.0 | 19.6 |
| Chain No. | Pitch | Dimensions | Lateral angle | Ultimate strength | Weight | |||||||
| A | B | F | S | J | K | T | D | Kg/M | ||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | degree | KN | ||
| 348 | 76.6 | 44.5 | 18.8 | 27.0 | 13.5 | 13.2 | 20.6 | 7.6 | 12.7 | 9.0 | 110.0 | 3.2 |
| 458 | 102.4 | 58.0 | 25.4 | 36.0 | 17.4 | 16.0 | 26.5 | 8.5 | 16.0 | 9.0 | 220.0 | 4.7 |
| 678 | 153.2 | 77.0 | 32.0 | 51.0 | 25.0 | 21.0 | 34.2 | 12.0 | 22.0 | 7.0 | 320.0 | 9.5 |
| 698 | 153.2 | 95.3 | 39.0 | 64.0 | 32.0 | 25.4 | 42.3 | 15.0 | 28.0 | 5.0 | 515.0 | 16.9 |
| 998 | 229.4 | 95.3 | 39.7 | 676.0 | 30.2 | 25.4 | 41.7 | 15.0 | 28.6 | 5.0 | 605.0 | 14.8 |
| 9118 | 229.4 | 125.0 | 50.0 | 78.0 | 37.2 | 33.5 | 52.0 | 20.0 | 35.0 | 5.0 | 832.0 | 24.2 |
| 80 | 80.0 | 48.0 | 18.8 | 29.0 | 13.5 | 13.0 | 21.0 | 6.5 | 12.0 | 6.5 | 110.0 | 3.2 |
| 80H | 80.0 | 72.0 | 32.0 | 42.0 | 19.5 | 19.0 | 34.5 | 11.0 | 18.0 | 6.5 | 250.0 | 8.7 |
| XT100 | 100.0 | 58.0 | 25.0 | 37.0 | 17.4 | 16.0 | 26.5 | 8.5 | 16.0 | 9.0 | 220.0 | 4.7 |
| XT160 | 160.0 | 78.0 | 34.5 | 54.0 | 28.0 | 20.5 | 36.0 | 12.0 | 24.0 | 5.0 | 410.0 | 10.3 |
Cast attachment for rivetless chains
 | |||||||||
| Chain No. | Pitch | Dimensions | |||||||
| A | B | C | T | F | H | D | E | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| X348 | 76.6 | 80.0 | 35.0 | 26.0 | 7.0 | 26.0 | 43.5 | 11.0 | 11.0 |
| X458 | 102.4 | 88.0 | 50.0 | 35.0 | 8.0 | 30.0 | 50.0 | 11.0 | 13.0 |
