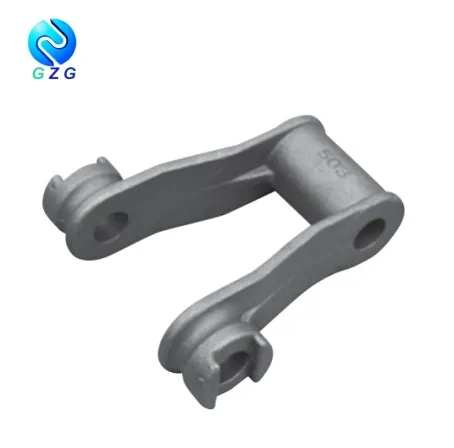

Cast 400 500 700 Class Pintle Chains

GZG provides 3 types of pintle chains, 400 class, 500 class and 700 class.The dimensions of them are standard and we could control it in a reasonable tolerance.If you are looking for non-standard cast pintle chain, kindly let us know and we'll discuss your request.

Find 3 types cast pintle chain dimensions as below.

1. Cast 400 Class Pintle Chains

Chain No.	Pitch		Dimensions			Ultimate strength	Weight
		A	B	C	D
	mm	mm	mm	mm	mm	KN	Kg/M
442	34.93	26.92	50.80	19.05	7.94	27.00	2.23
445	41.40	26.92	50.80	19.05	7.94	27.00	2.38
452	38.25	27.69	56.36	21.43	9.26	31.00	3.27
455	41.40	28.45	57.94	21.43	9.26	31.00	3.13
462	41.50	36.58	65.09	23.81	11.11	39.00	4.02
477	58.62	31.75	64.29	25.40	11.11	43.00	3.27
488	66.27	41.00	75.00	25.40	11.11	49.00	4.61
Chain No.	Pitch		Dimensions			Ultimate strength	Weight
		A	B	C	D
	mm	mm	mm	mm	mm	KN	Kg/M
4103	78.11	47.60	87.00	38.00	19.01	124.00	9.23
4124	103.20	58.00	108.00	44.50	20.64	166.00	13.69

2. Cast 500700 Class Pintle Chains

Chain No.	Pitch		Dimensions			Ultimate strength	Weight
		A	B	C	D
	mm	mm	mm	mm	mm	KN	Kg/M
503	76.70	50.80	107.20	33.30	14.00	90.00	9.23
504	103.10	73.20	146.00	42.90	16.00	122.00	12.65
Chain No.	Pitch		Dimensions			Ultimate strength	Weight
		A	B	C	D
	mm	mm	mm	mm	mm	KN	Kg/M
710	119.63	78.60	142.88	37.00	17.46	122.00	9.38
720	152.40	45.97	90.09	38.10	17.46	122.00	6.25
720S	152.40	47.70	92.40	39.60	19.05	167.00	7.74
730	41.50	50.80	96.00	44.45	19.05	187.00	8.93

How do we pack the chains?

As the picture shows, normally we don't use carton box as how we pack roller chain. Instead, we put cast chain or drop-forged chain in transparent bag first, then use plywood case to protect them from damage.

How many ways can client choose for payment and transportation?

For payment, we advise abroad client to choose T/T, but other way to pay us is acceptable too.

For transportation, most clients choose ocean shipping and land carriage for huge order, choose express for small order(if the thing is not big and heavy).

Please kindly let us know if you need any help, send us e-mail or call us, we are happy to solve your problem.
